Figure 5.


Download original image

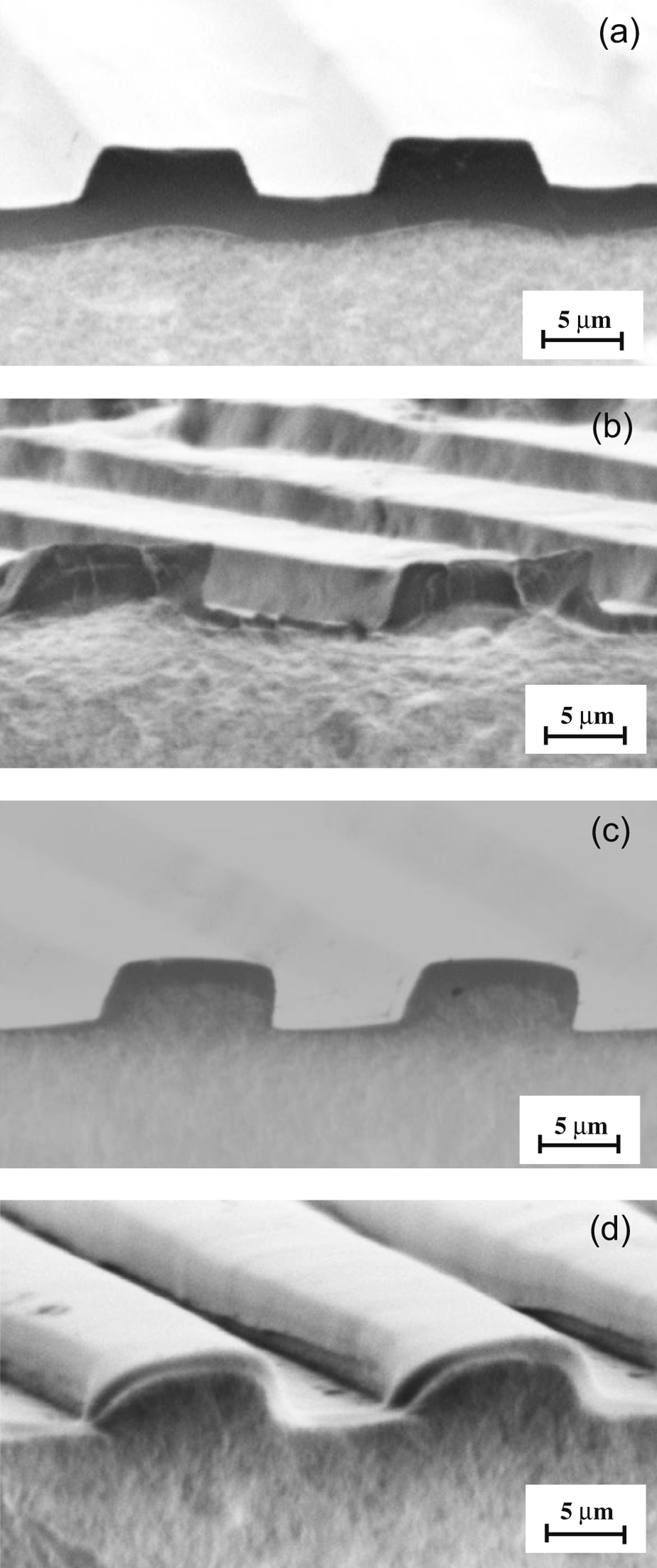

SEM images of interface patterns between the upper layer and lower layer with the pressure of 48 MPa. The thicknesses of upper layer are: (a) 2.8 μm, (b) 2.3 μm, (c) 1.8 μm, and (d) 1.5 μm.
