Fig. 5

Download original image

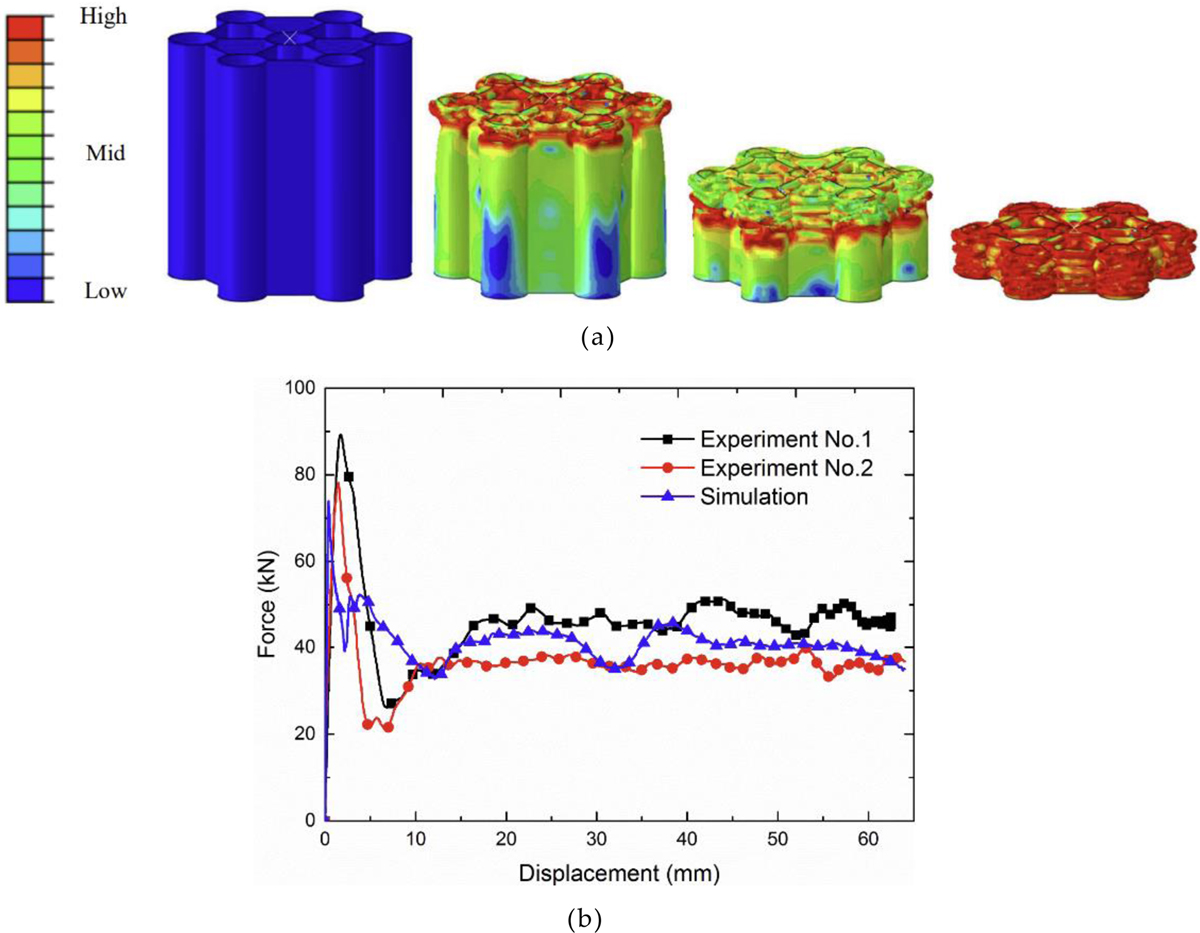

(a) Numerical findings showing, (a) the graphic progressive diamond mode of failure mechanism; and (b) the generated load-displacement curve based of experimental and numerical crush tests describing the gradual diamond deformation mechanism of a non-self-similar nested HC under dynamic extruded shell in-plane crushing loads [37].
