Fig. 17

Download original image

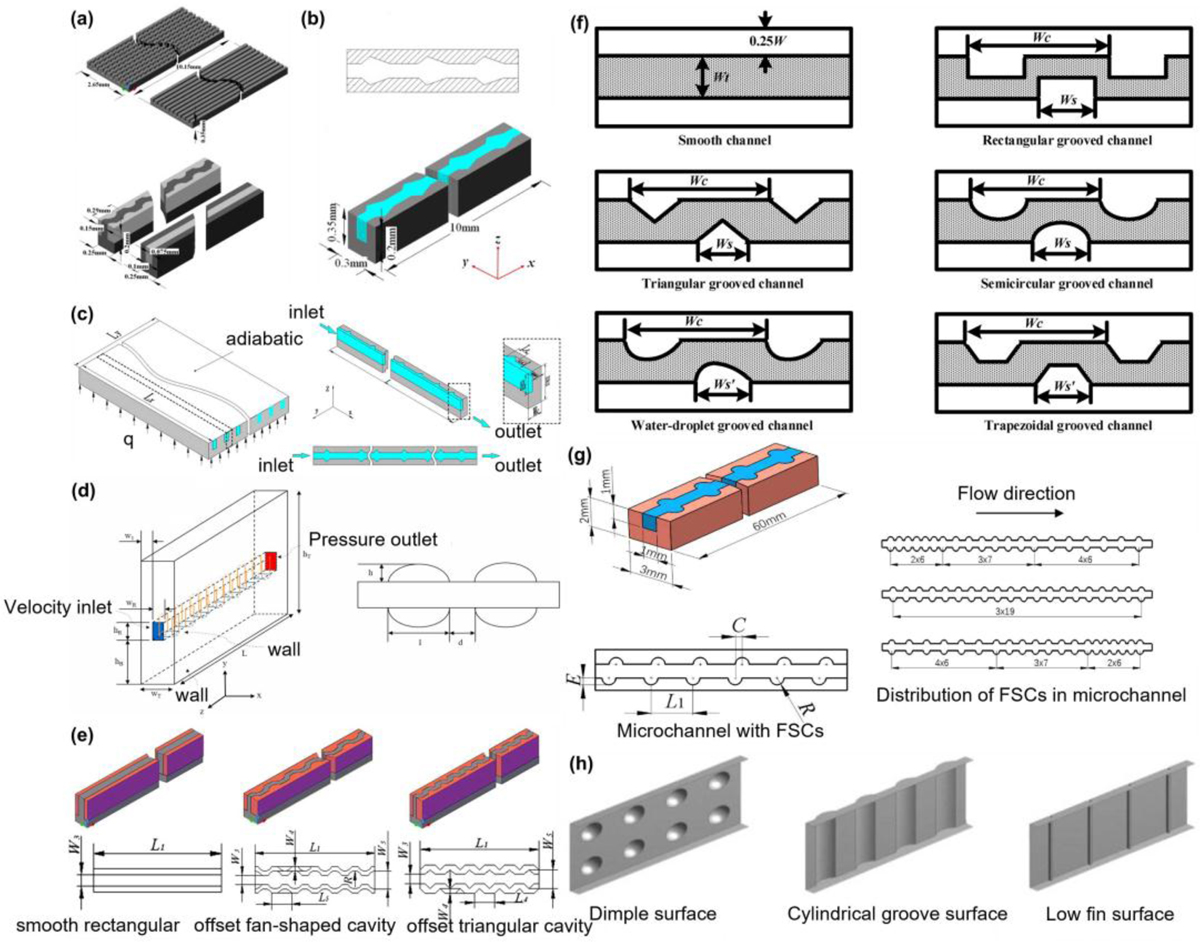

Different concave cavity structures on the walls (a) Offset fan-shaped concave cavity structure [62] (b) Triangular concave cavity [63] (c) Triangular concave cavity [64] (d) Arc-shaped grooved microchannels [65] (e) Offset fan-shaped cavity structure and offset triangular cavity structure [66] (f) Five different sidewall concave cavity structures [67] (g) Fan-shaped concave cavities with different distribution methods [69] (h) Dimple-shaped, cylindrical grooved and low finned structure [70].
