Fig. 5

Download original image

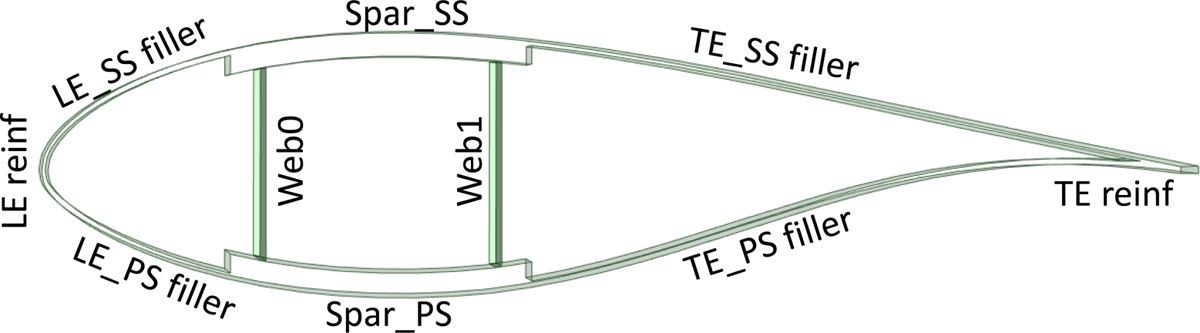

Typical section of the composite wind turbine blade. LE reinf: leading edge reinforcement, LE_SS filler leading edge suction side filler, Spar_SS: suction side spar, TE_SS filler: trailing edge suction side filler, TE reinf: trailing edge reinforcement, TE_PS filler: trailing edge pressure side filler, Spar_PS: pressure side spar, LE_PS filler: leading edge pressure side filler.
