Fig. 6


Download original image

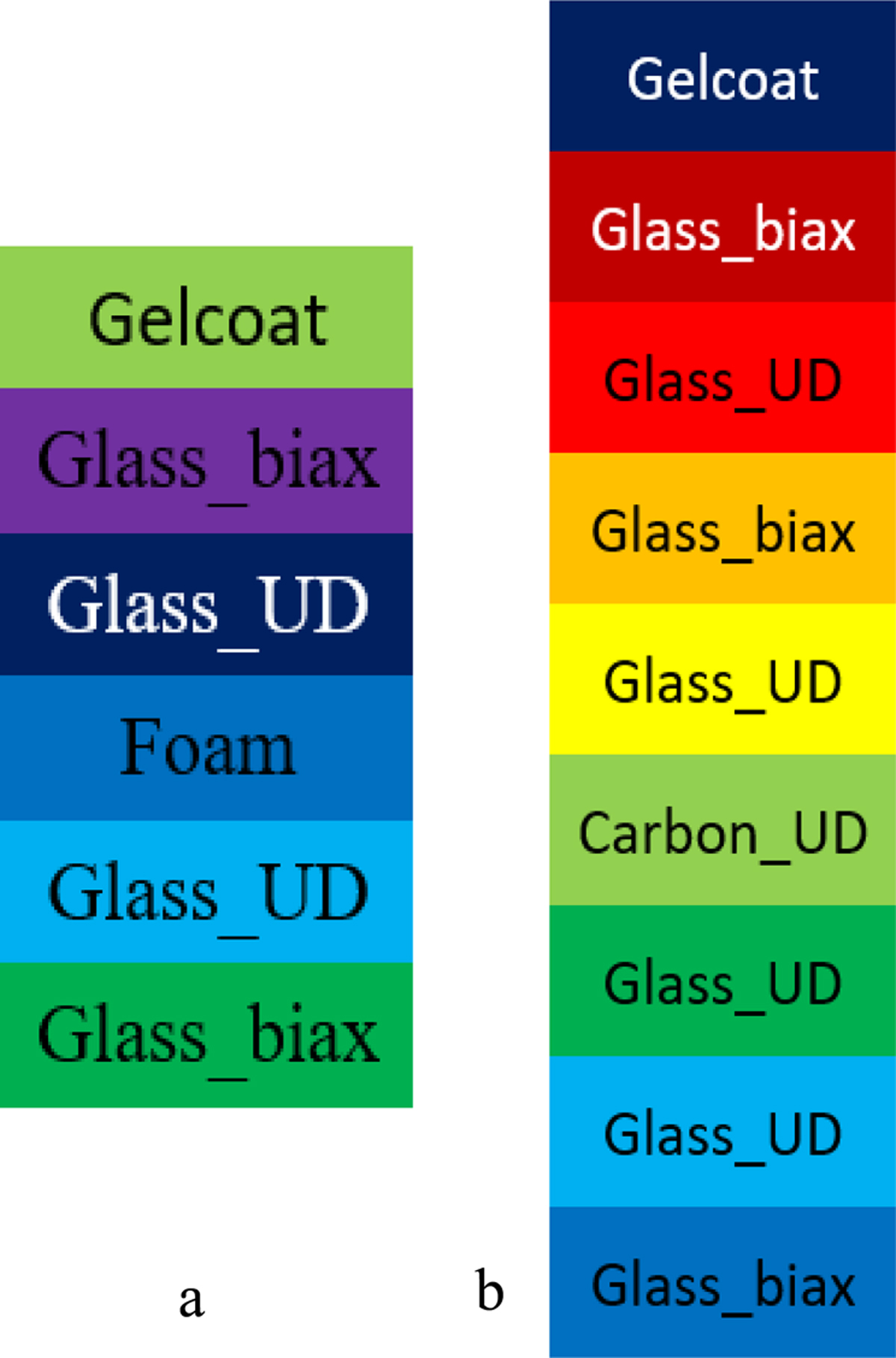

Composite stack-up (a) fillers including LE_SS_filler, LE_PS_filler, TE_SS_filler and TE_PS_filler. Glass_UD: unidirectional glass fibre, Glass_biax: biaxial glass fibre, Gelcoat: coating for UV protection. (b) Spar_SS and Spar_PS. Carbon_UD: unidirectional carbon fibre.
